TMA COLD HEADING DIES FOR COLD HEADING EQUIPMENT




No stamping or pressing can do without dies and punches. This tool is used for cold heading, stamping, part marking.

These products operate under high power and thermal loads, they are made of tool steel with a multi-layer wear-resistant coating. Dies and punches are consumables in production. They are produced in various shapes, types and sizes.

High-precision technology for the production of dies for cold heading machines allows for a long tool life and unrivaled accuracy.

Strict quality control is applied at every stage of the manufacturing process, as well as in the selection of materials, technical process and in tool maintenance.

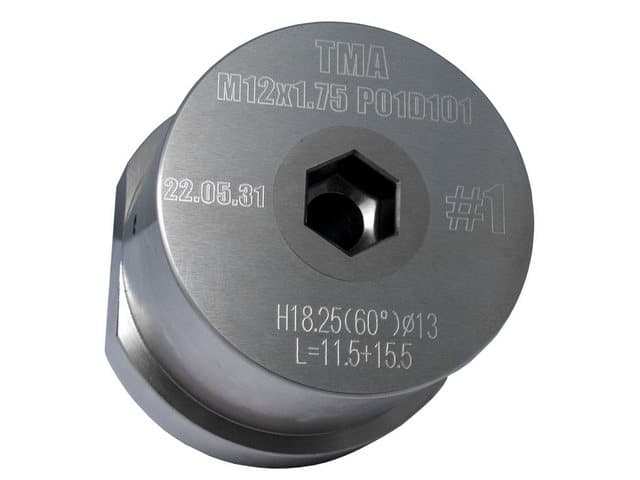

Cold heading Die TMA JNFR-19B5S M12x1.75 DIN934 #1 DIE
Cold heading Die for Nut Formers TMA JNFR-19B5S M12x1.75 DIN934 #1 DIE

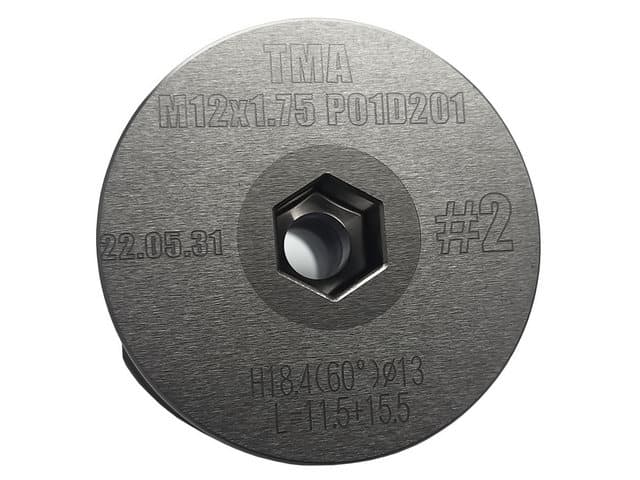

Cold heading Die TMA JNFR-19B5S M12x1.75 DIN934 #2 DIE
Cold heading Die for Nuts TMA JNFR-19B5S M12x1.75 DIN934 #2 DIE

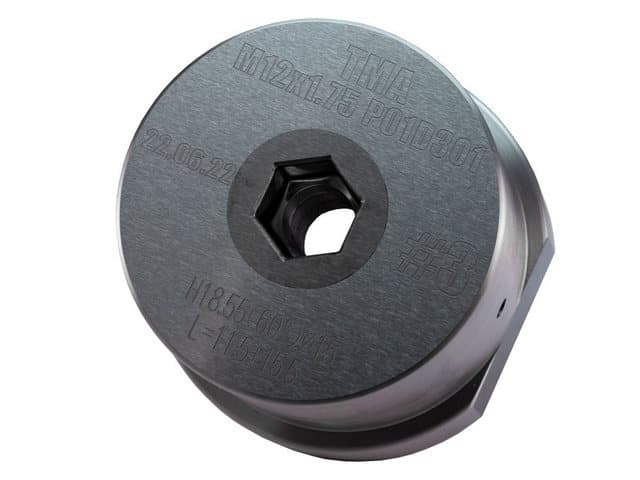

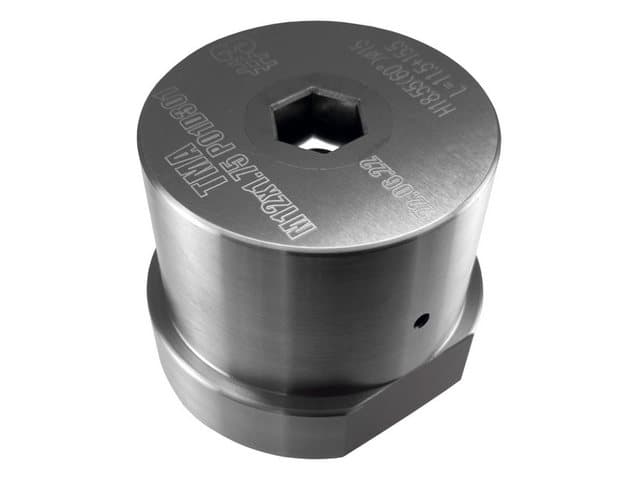

матрицы холодновысадочные TMA JNFR-19B5S M12x1.75 DIN934 #3 DIE
Cold heading Die for Nuts TMA JNFR-19B5S M12x1.75 DIN934 #3 DIE
Cold heading Die TMA JNFR-19B5S M12x1.75 DIN934 #3 DIE
Cold heading Die for Nuts TMA JNFR-19B5S M12x1.75 DIN934 #3 DIE

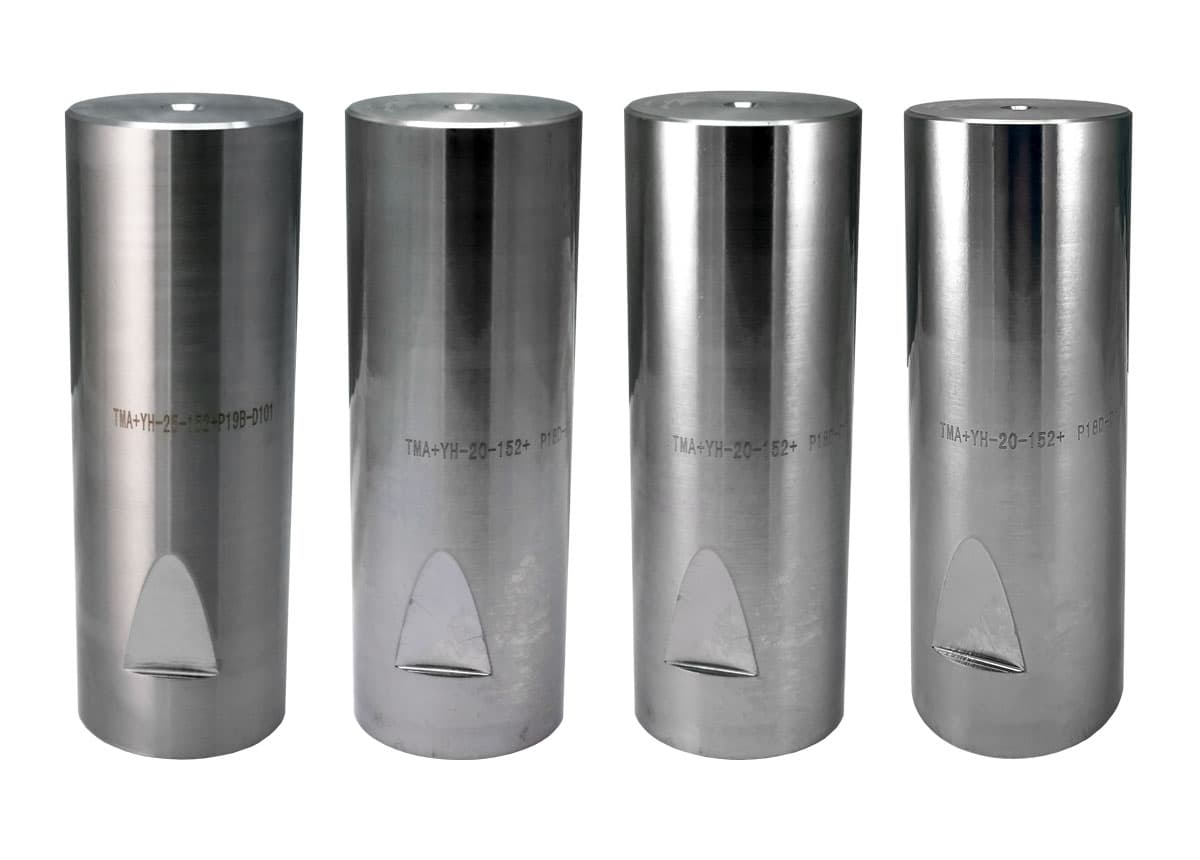

Cold heading die for self-taping screw TMA+YH-20-152 P18D-D101 and TMA+YH-25-152 P19B-D101
Cold heading die for self-taping screw TMA+YH-20-152 P18D-D101 and TMA+YH-25-152 P19B-D101
TMA cold heading dies for self-taping screw
TMA cold heading dies for self-taping screw

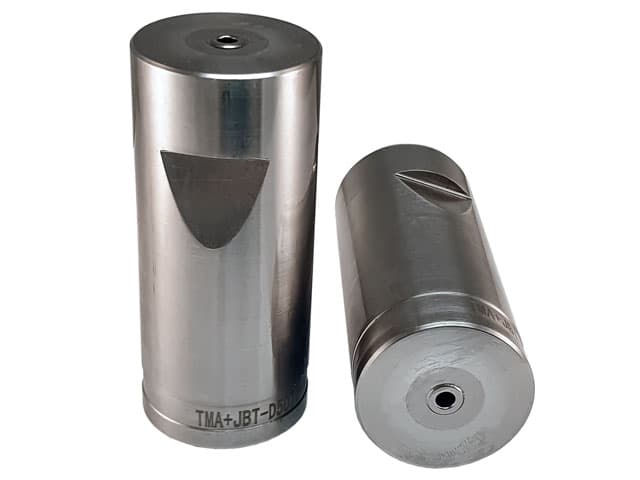

Cold heading die for self-taping screw TMA+JBT-D5076
Cold heading die for self-taping screw TMA+JBT-D5076

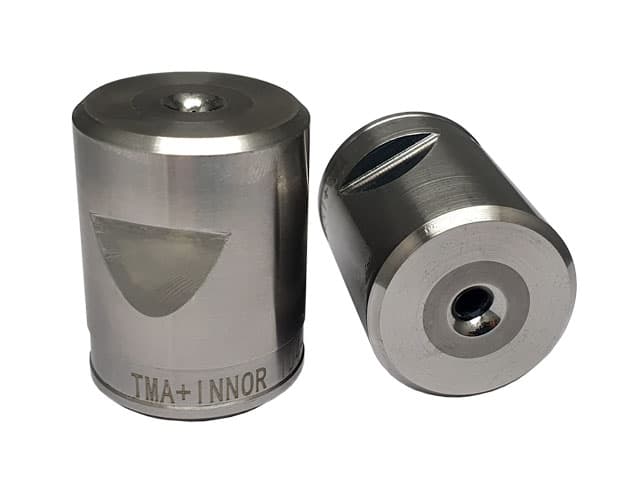

Main Double Sided Die for SF-ID4
Main Double Sided Die for SF-ID4

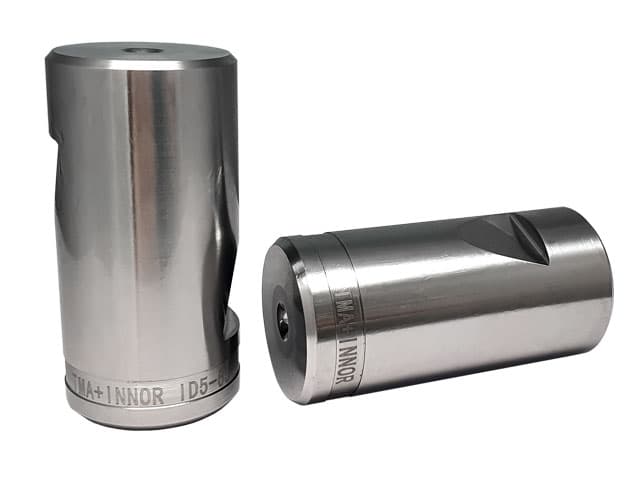

Main Double Sided Die for SF-ID5
Main Double Sided Die for SF-ID5

Segmented Hex Socket Dies with Sleeve

Segmented Hex Socket Dies with Sleeve

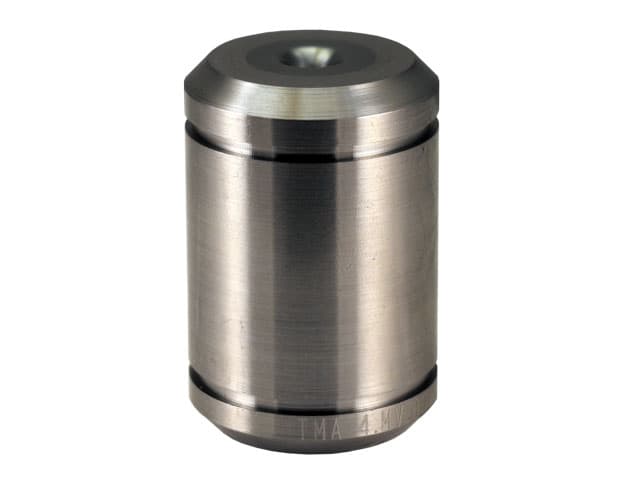

A cold heading die for bolts, nuts, parts is a matrix block tool that forms the shape of the rod, neck and head of the future product. The workpiece cut from the coil is transferred to a solid upsetting die and pushed into it by a punch. By moving the punch forward, the workpiece is fed into the hole of the upsetting die until it stops and then, with further movement of the punch, the head of the fastener is upset.


Segmented Dies For Nut

Segmented Dies For Nut

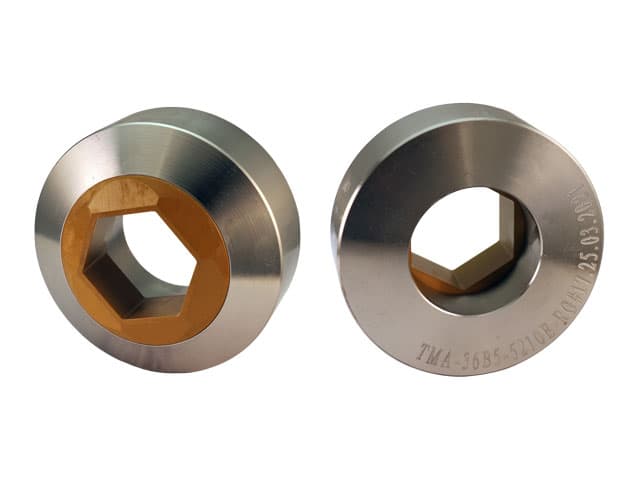

Cold Forming Trimming Die

Cold Forming Trimming Die

Trimming, as a technological operation of cold forging, is the simplest and most often used to form a multifaceted or complex shape of the head of a bar part. Instead of a hexagon, it can be a square, ellipse, triangle, octagon, or other asymmetric shape, depending on the conditions of installation and operation of the part.


Carbide Six Lobe Socket Dies

Carbide Six Lobe Socket Dies

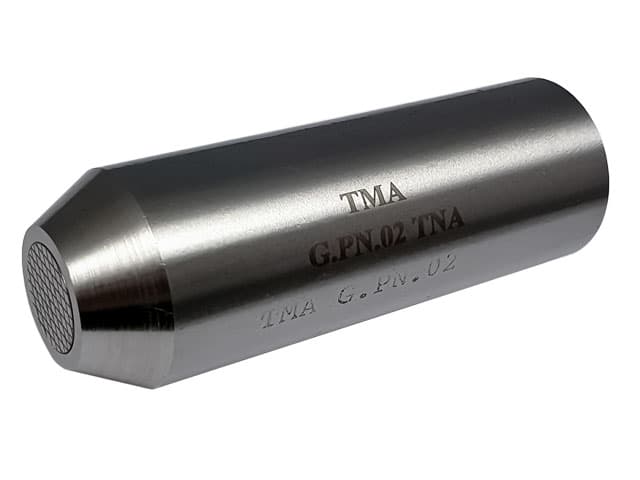

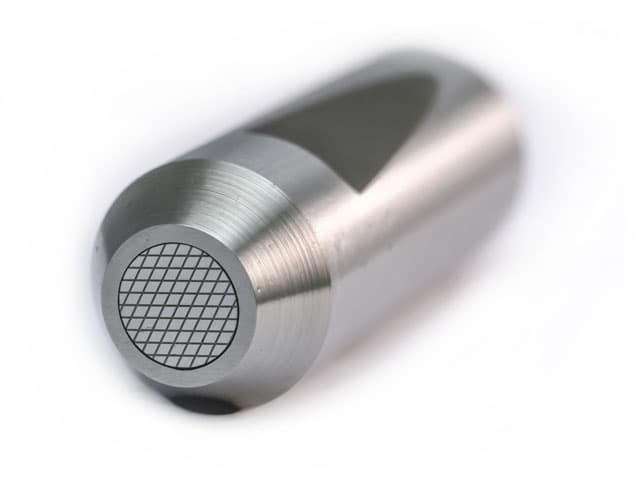

Cold heading nail dies for the formation of a notch on the head of the nail

Cold heading nail dies for the formation of a notch on the head of the nail Cold heading nail dies for the formation of a notch on the head of the nail
