TMA COLD HEADING DIES

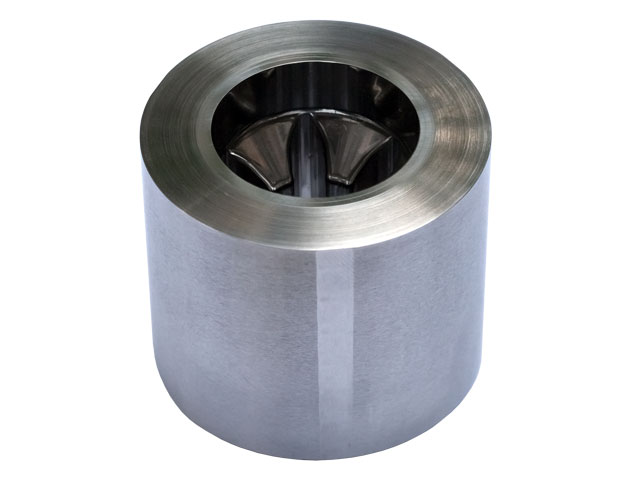

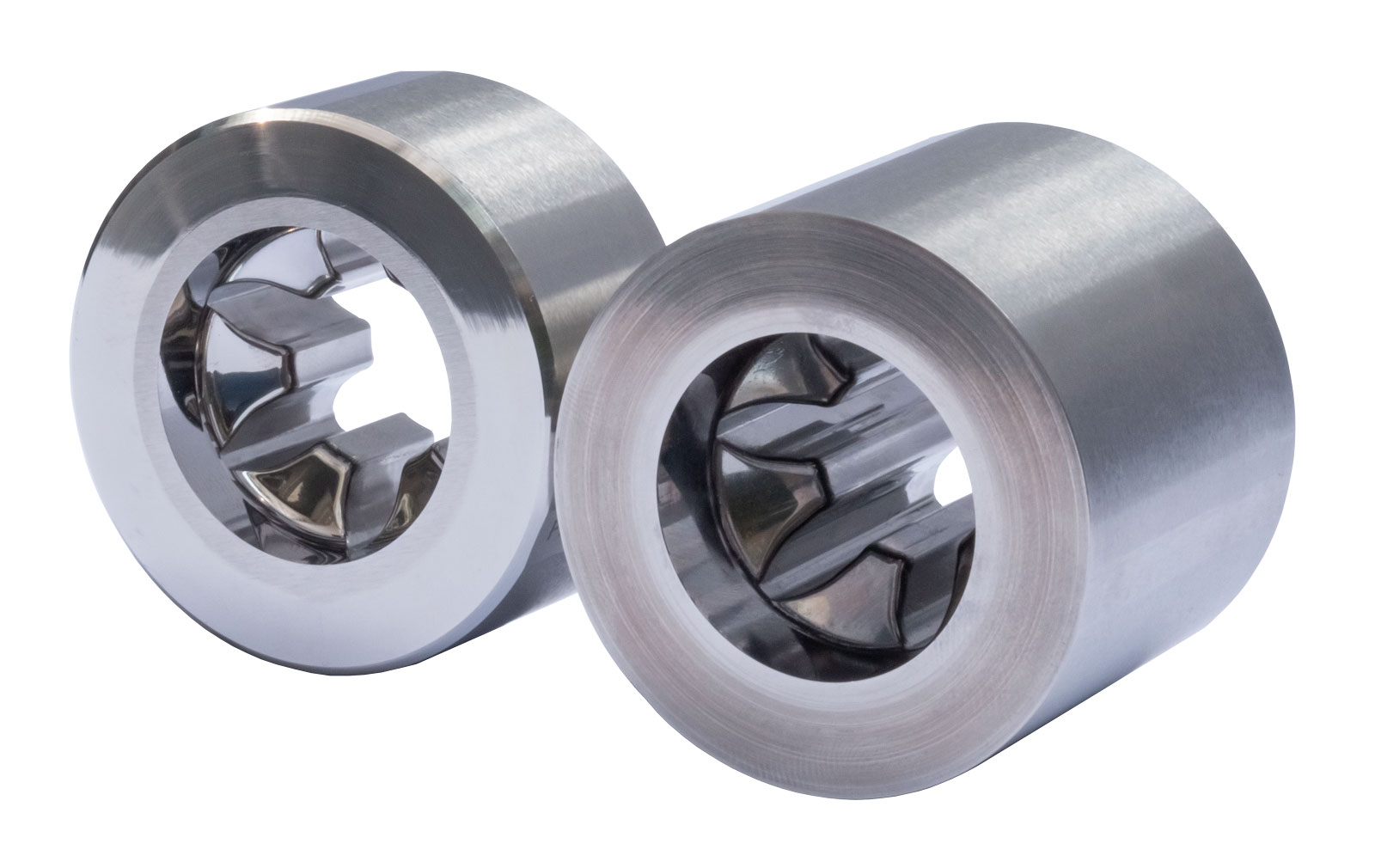

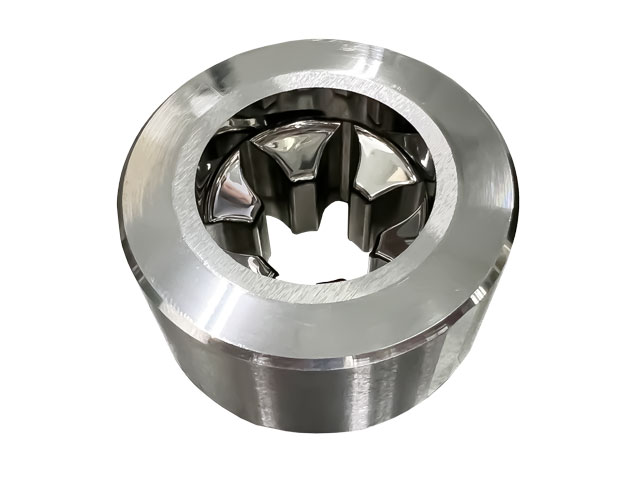

Carbide Six Lobe Socket Dies
The Six Lobe form has become a very popular drive system because of its excellent screw driving performance and has become the standard drive for numerous industries throughout the world.
- The manufacturing technology allows you to control the accuracy of the instrument at the highest level.
- Specially developed polishing method significantly increases the wear resistance of the tool, especially in the core area of the stamp.
| Model | Workpiece size | A | D | W | L |
|---|---|---|---|---|---|
| mm | mm | mm | mm | ||
| RG-7001-04 | E04 | 3.70 | 12.70 | 5.54 | 12.70 |
| RG-7001-05 | E05 | 4.59 | 15.88 | 6.60 | 12.70 |
| RG-7001-06 | E06 | 5.56 | 15.88 | 7.54 | 12.70 |
| RG-7001-07 | E07 | 6.01 | 19.05 | 11.10 | 19.05 |
| RG-7001-08 | E08 | 7.28 | 19.05 | 12.37 | 19.05 |
| RG-7001-10 | E10 | 9.21 | 25.40 | 15.52 | 25.40 |
| RG-7001-11 | E11 | 9.88 | 25.40 | 16.03 | 25.40 |
| RG-7001-12 | E12 | 10.97 | 31.75 | 17.12 | 25.40 |
| RG-7001-14 | E14 | 12.69 | 31.75 | 18.59 | 25.40 |
| RG-7001-16 | E16 | 14.52 | 31.75 | 21.64 | 25.40 |
| RG-7001-18 | E18 | 16.38 | 31.75 | 23.17 | 25.40 |
| RG-7001-20 | E20 | 18.17 | 38.10 | 26.34 | 38.10 |
| RG-7001-24 | E24 | 21.84 | 38.10 | 31.12 | 38.10 |
| RG-7001-28 | E28 | 25.40 | 50.80 | 35.87 | 38.10 |
| RG-7001-32 | E32 | 28.90 | 50.80 | 40.64 | 44.45 |
| RG-7001-36 | E36 | 32.51 | 50.80 | 45.39 | 44.45 |
| RG-7001-40 | E40 | 36.06 | 57.15 | 50.17 | 44.45 |
| RG-7001-44 | E44 | 39.67 | 63.50 | 54.92 | 44.45 |
