TOOLS FOR THREAD ROLLING MACHINES






Purpose and features of nut taps

Nut Tap for Stainless Steel & Hot Forging Nuts is standard items, that can either be used by connecting to a bent shank or short shank. By setting the thread length to 30 threads and applying Multilayer Titanium Carbon Nitride (TiCN) coating, longer tool life is achieved thus reducing customer cost. Used on special Automatic Nuts Tapping Machine.

  • These nut taps are used for threading stainless steel nuts on automatic thread rolling machines.
  • Special chip flute design provides better chip evacuation when threading stainless steel nuts.
  • These nut taps are available in metric, american and imperial threads.
  • Total length from 55 to 165 mm with thread length from 12 to 95 mm.
  • The standard thread length is 30 threads.
  • Round shank.
  • We make design and manufacture of nut taps according to customer requirements.
  • Tool Material Type: Vanadium-containing High-Speed Steel (HSSE)
  • Surface treatment of nut taps: Titanium Carbon Nitride (TiCN).
  • The nut taps are manufactured with GH accuracy class (13 µm).

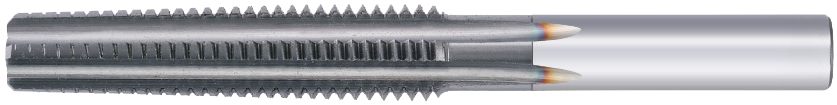

Outlook & Drawing of Nut Tap for Stainless Steel & Hot Forging Nuts


Nut Tap for Stainless Steel Nut Tap for Stainless Steel Titanium Carbon Nitride  (TiCN)





Table 1. Metric thread (all table dimensions in mm).

Thread Specification Threads per inch
(25.4 mm)
L
Total Length
l
Thread Length
Ds
Shank Dia.
M2.6 X 0.45 30T 55 13.5 2
M3 X 0.5 58.6 15 2.3
M4 X 0.7 58.2 21 3
M5 X 0.8 62.8 24 3.8
M6 X 1 67.4 30 4.5
M7 X 1 70 30 5.6
M8 X 1.25 85 37.5 6.05
M8 X 1 77 30 6.4
M10 X 1.5 89 45 7.8
M10 X 1.25 89 37.5 8.1
M10 X 1 89 30 8.4
M12 X 1.75 102 52.5 9.5
M12 X 1.5 102 45 9.8
M12 X 1.25 102 37.5 10.1
M12 X 1 102 30 10.5
M14 X 2 114 60 11.2
M14 X 1.5 114 45 11.2
M16 X 2 127 60 13.1
M16 X 1.5 127 45 13.1
M18 X 2.5 133 75 14
M18 X 2 133 60 15
M20 X 2.5 133 75 15.5
M20 X 2 133 60 16.5
M20 X 1.5 133 45 16.5
M22 X 2.5 146 75 16.5
M22 X 2 146 60 19
M24 X 3 165 90 18.5
M24 X 2 165 60 20
M24 X 1.5 165 45 21.5



Table 2. American thread (all table dimensions in mm).

Thread Specification Threads per inch
(25.4 mm)
L
Total Length
l
Thread Length
Ds
Shank Dia.
NO.4 - 40 UNC 30T 58.9 19.1 2
NO.4 - 48 UNF 58.9 15.9 2
NO.5 - 40 UNC 58.6 19.1 2.2
NO.5 - 44 UNF 58.6 17.3 2.2
NO.6 - 32 UNC 60.6 23.8 2.4
NO.6 - 40 UNF 60.6 19.1 2.6
NO.8 - 32 UNC 60.2 23.8 3.1
NO.8 - 36 UNF 60.2 21.2 3.1
NO.10 - 24 UNC 69 31.8 3.4
NO.10 - 32 UNF 68.7 23.8 3.7
NO.12 - 24 UNC 69.7 31.8 4
NO.12 - 28 UNF 69.5 27.2 4.2
1/4 - 20 UNC 72.3 38.1 4.5
1/4 - 28 UNF 71.9 27.2 5
5/16 - 18 UNC 80 42.3 6
5/16 - 24 UNF 80 31.8 6.3
3/8 - 16 UNC 89 47.6 7.3
3/8 - 24 UNF 89 31.8 8
7/16 - 14 UNC 102 54.4 8.6
7/16 - 20 UNF 102 38.1 9.3
1/2 - 13 UNC 102 58.6 10
1/2 - 20 UNF 102 38.1 10.9
9/16 - 12 UNC 114 63.5 11
9/16 - 18 UNF 114 42.3 11.4
5/8 - 11 UNC 127 69.3 12.8
5/8 - 18 UNF 127 42.3 13.1
3/4 - 10 UNC 133 76.2 15
3/4 - 16 UNF 133 47.6 15
7/8 - 9 UNC 146 84.7 17
7/8 - 14 UNF 146 54.4 18.5
1 - 8 UNC 165 95.3 20
1 - 12 UNF 165 63.5 21



Table 3. W-Type thread (all table dimensions in mm).

Thread Specification Threads per inch
(25.4 mm)
L
Total Length
l
Thread Length
Ds
Shank Dia.
W 3/16 - 24 30T 69 31.8 3.2
W 1/4 - 20 72.4 38.1 4.5
W 5/16 - 18 80 42.3 6
W 3/8 - 16 89 47.6 7.3
W 7/16 - 14 102 54.4 8.6
W 1/2 - 12 102 63.5 9.5
W 9/16 - 12 114 63.5 10.5
W 5/8 - 11 127 69.3 12
W 3/4 - 10 133 76.2 15
W 7/8 - 9 133 84.7 17
W 1 - 8 165 95.3 20
