ROLLING TAPS FOR THREAD ROLLING MACHINES

TiN COATED ROLLING TAPS WITH LONG THREAD

Fluteless taps produce threads by deforming the material, thus without any chips. They are suitable for blind and through holes, and their field of application has grown wider, including now aluminum, steel and stainless.

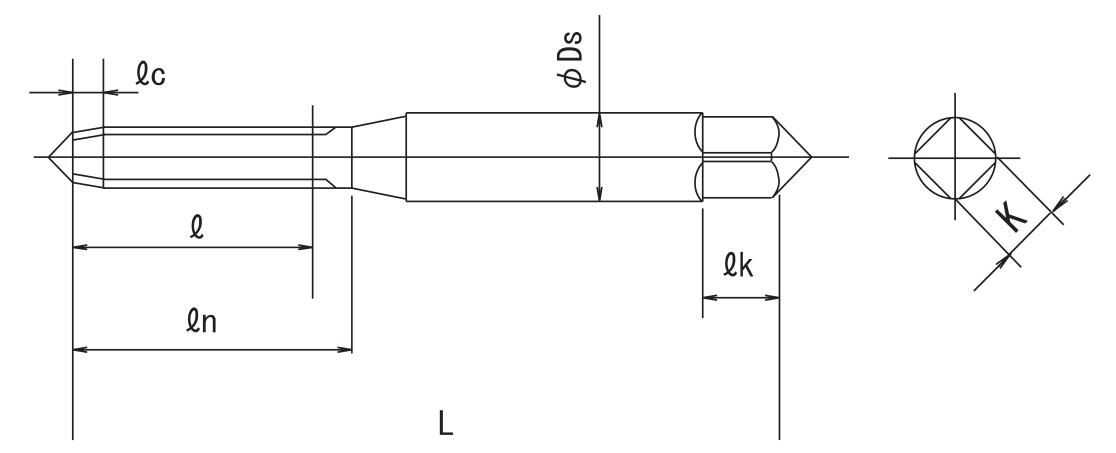

Outlook & Drawing

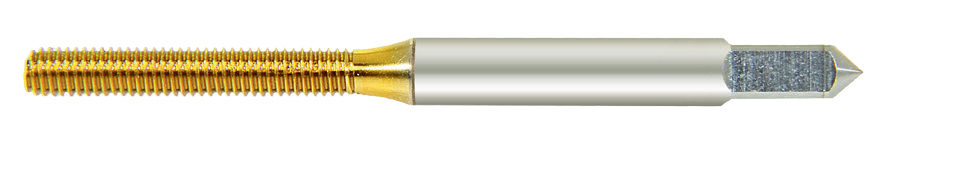

TiN Coated Rolling Taps with Long Thread

vanadium-containing high-speed steel with titanium nitride coating

Application of TiN coated rolling taps with long thread

Suitable for both steel and non-ferrous alloys. And it could be used in tapping Machine, Auto Lathe, CNC, etc

Tool Material Type: Vanadium-containing High-Speed Steel (HSSE)

Surface treatment: TiN (Titanium Nitride).

TiN coated rolling taps features

Capable of high-speed cutting and efficient tapping
Offer drastically improved durability
Applicable for use where the tapping length can not be reached with a standard length tap application

Attention! Threading with fluteless tap is only applicable for stringy materials

Working Material and Cutting Speed

Working Material	Blind hole	Through hole	suitable cutting speed (m/min)	Working Material	Blind hole	Through hole	suitable cutting speed (m/min)
Low Carbon Steels ~C0.25	Excellent	Excellent	8~13	Brass castings/Brass Bsc.Bs	Good	Good	7~12
Medium Carbon Steels C0.25~C0.45	Excellent	Excellent	7~10	Bronze PB			10~20
High Carbon Steels C0.45~	Excellent	Excellent	5~8	Aluminum Rolled AL	Good	Good	7~12
Alloy steels SCM	Good	Good	5~8	Aluminum alloy castings AC ADC	Good	Good	10~15
Hardened Steels HRC25~45	Good	Good	-	Magnesium alloy casting MC			-
Stainless Steels SUS	Good		5~10	Zinc castings ZDC	Good	Good	7~12
Cast Steel SC	Good	Good	-	Titanium Alloys Ti-AL			-
Cast Iron FC			-	Nickel alloys Inocorel			-
High Tension Cast Iron FCD			-	Thermosetting Plastic Epoxy			-
Cooper Cu	Good	Good	7~12	Thermoplastic PVC Nylon POM			-

Lubrication

Смазочно-охлаждающие жидкости	Working Material
NON-WATER SOLUBLE	Carbon steels (low,medium,high), Alloy steels, Hardened Steels, Stain steels, Cast steels, Cast iron, Ductile cast, Cooper, Brass, Brass casting, Bronze, Aluminum Rolled, Aluminum alloy casting, Masnesium alloy casting, Zinc alloy casting
WATER SOLUBLE	Carbon steels (low,medium,high), Alloy steels, Hardened Steels, Stain steels, Cast steels, Cast iron, Ductile cast, Cooper, Brass, Brass casting, Bronze, Aluminum Rolled, Aluminum alloy casting, Masnesium alloy casting, Zinc alloy casting, Thermosetting Plastic, Thermoplastic
SEMI-DRY	Cast iron, Ductile cast, Brass, Brass casting, Thermosetting Plastic
DRY	Cast iron, Brass, Brass casting, Thermosetting Plastic

Ordering of TiN Coated Rolling Taps with Long Thread

Metric thread
RG NO.	Thread Size	TAP Limit	Chamfer (lc)	Total Length (L)	Thread Length (l)	Shank Dia. (Ds)
105283	M1 X 0.25	RH3	P	30	6	3
104283	M1 X 0.25	RH3	B	30	6	3
105284	M1 X 0.25	RH4	P	30	6	3
104284	M1 X 0.25	RH4	B	30	6	3
105285	M1 X 0.25	RH5	P	30	6	3
104285	M1 X 0.25	RH5	B	30	6	3
105353	M1.2 X 0.25	RH3	P	32	6	3
104353	M1.2 X 0.25	RH3	B	32	6	3
105354	M1.2 X 0.25	RH4	P	32	6	3
104354	M1.2 X 0.25	RH4	B	32	6	3
105355	M1.2 X 0.25	RH5	P	32	6	3
104355	M1.2 X 0.25	RH5	B	32	6	3
105423	M1.4 X 0.3	RH3	P	34	6.5	3
104423	M1.4 X 0.3	RH3	B	34	6.5	3
105424	M1.4 X 0.3	RH4	P	34	6.5	3
104424	M1.4 X 0.3	RH4	B	34	6.5	3
105425	M1.4 X 0.3	RH5	P	34	6.5	3
104425	M1.4 X 0.3	RH5	B	34	6.5	3
105493	M1.6 X 0.35	RH3	P	36	7	3
104493	M1.6 X 0.35	RH3	B	36	7	3
105494	M1.6 X 0.35	RH4	P	36	7	3
104494	M1.6 X 0.35	RH4	B	36	7	3
105495	M1.6 X 0.35	RH5	P	36	7	3
104495	M1.6 X 0.35	RH5	B	36	7	3
156302	M1.7 X 0.35	RH3	P	36	10	3
156304	M1.7 X 0.35	RH3	B	36	10	3
128851	M1.7 X 0.35	RH4	P	36	10	3
128852	M1.7 X 0.35	RH4	B	36	10	3
156306	M2 X 0.4	RH3	P	40	11	3
156309	M2 X 0.4	RH3	B	40	11	3
156307	M2 X 0.4	RH4	P	40	11	3
156310	M2 X 0.4	RH4	B	40	11	3
128853	M2 X 0.4	RH5	P	40	11	3
128854	M2 X 0.4	RH5	B	40	11	3
128740	M2 X 0.4	RH5.5	B	40	11	3
128855	M2 X 0.4	RH6	P	40	11	3
128856	M2 X 0.4	RH6	B	40	11	3
128745	M2 X 0.4	RH6.5	B	40	11	3
128845	M2 X 0.4	RH7	B	40	11	3
128750	M2.3 X 0.4	RH4	P	42	11	3
128751	M2.3 X 0.4	RH4	B	42	11	3
128857	M2.3 X 0.4	RH5	P	42	11	3
128858	M2.3 X 0.4	RH5	B	42	11	3
156314	M2.5 X 0.45	RH3	P	44	15	3
156317	M2.5 X 0.45	RH3	B	44	15	3
156315	M2.5 X 0.45	RH4	P	44	15	3
156318	M2.5 X 0.45	RH4	B	44	15	3
128756	M2.5 X 0.45	RH5	P	44	15	3
156326	M2.5 X 0.45	RH5	B	44	15	3
128757	M2.5 X 0.45	RH5.5	B	44	15	3
128859	M2.5 X 0.45	RH6	P	44	15	3
128860	M2.5 X 0.45	RH6	B	44	15	3
128759	M2.5 X 0.45	RH6.5	B	44	15	3
128846	M2.5 X 0.45	RH7	B	44	15	3
156320	M2.6 X 0.45	RH3	P	44	15	3
156323	M2.6 X 0.45	RH3	B	44	15	3

All table dimensions in mm.

Metric thread
RG NO.	Thread Size	TAP Limit	Chamfer (lc)	Total Length (L)	Thread Length (l)	Shank Dia. (Ds)
156321	M2.6 X 0.45	RH4	P	44	15	3
156324	M2.6 X 0.45	RH4	B	44	15	3
128760	M2.6 X 0.45	RH5	P	44	15	3
128761	M2.6 X 0.45	RH5	B	44	15	3
128763	M2.6 X 0.45	RH5.5	B	44	15	3
128861	M2.6 X 0.45	RH6	P	44	15	3
128862	M2.6 X 0.45	RH6	B	44	15	3
128764	M2.6 X 0.45	RH6.5	B	44	15	3
128847	M2.6 X 0.45	RH7	B	44	15	3
156331	M3 X 0.5	RH3	P	46	18	4
156327	M3 X 0.5	RH3	B	46	18	4
156332	M3 X 0.5	RH4	P	46	18	4
156328	M3 X 0.5	RH4	B	46	18	4
128865	M3 X 0.5	RH5	P	46	18	4
156329	M3 X 0.5	RH5	B	46	18	4
128863	M3 X 0.5	RH6	P	46	18	4
128864	M3 X 0.5	RH6	B	46	18	4
128765	M3 X 0.5	RH6.5	B	46	18	4
128849	M3 X 0.5	RH7	P	46	18	4
128850	M3 X 0.5	RH7	B	46	18	4
128866	M3 X 0.5	RH8	B	46	18	4
156334	M3.5 X 0.6	RH3	P	48	15	4
156336	M3.5 X 0.6	RH3	B	48	15	4
128867	M3.5 X 0.6	RH6	P	48	15	4
128868	M3.5 X 0.6	RH6	B	48	15	4
128871	M3.5 X 0.6	RH7	B	48	15	4
156338	M4 X 0.7	RH4	P	52	20	5
156341	M4 X 0.7	RH4	B	52	20	5
156353	M4 X 0.7	RH5	P	52	20	5
156354	M4 X 0.7	RH5	B	52	20	5
156339	M4 X 0.7	RH6	P	52	20	5
156342	M4 X 0.7	RH6	B	52	20	5
128869	M4 X 0.7	RH7	P	52	20	5
128870	M4 X 0.7	RH7	B	52	20	5
128873	M4 X 0.7	RH8	B	52	20	5
156344	M5 X 0.8	RH4	P	60	22	5.5
156347	M5 X 0.8	RH4	B	60	22	5.5
156345	M5 X 0.8	RH6	P	60	22	5.5
156348	M5 X 0.8	RH6	B	60	22	5.5
128766	M5 X 0.8	RH7	P	60	22	5.5
128767	M5 X 0.8	RH7	B	60	22	5.5
128875	M5 X 0.8	RH8	P	60	22	5.5
128876	M5 X 0.8	RH8	B	60	22	5.5
156350	M6 X 1	RH4	P	62	24	6
156352	M6 X 1	RH4	B	62	24	6
128770	M6 X 1	RH6	P	62	24	6
128771	M6 X 1	RH6	B	62	24	6
128772	M6 X 1	RH7	P	62	24	6
128773	M6 X 1	RH7	B	62	24	6
128879	M6 X 1	RH8	P	62	24	6
128880	M6 X 1	RH8	B	62	24	6

All table dimensions in mm.

U-Type thread
RG NO.	Thread Size	TAP Limit	Chamfer (lc)	Total Length (L)	Thread Length (l)	Shank Dia. (Ds)
107033	NO.1 - 64 UNC	RH3	P	36	11	3
106033	NO.1 - 64 UNC	RH3	B	36	11	3
107034	NO.1 - 64 UNC	RH4	P	36	11	3
106034	NO.1 - 64 UNC	RH4	B	36	11	3
107035	NO.1 - 64 UNC	RH5	P	36	11	3
106035	NO.1 - 64 UNC	RH5	B	36	11	3
107043	NO.1 - 72 UNF	RH3	P	36	11	3
106043	NO.1 - 72 UNF	RH3	B	36	11	3
107044	NO.1 - 72 UNF	RH4	P	36	11	3
106044	NO.1 - 72 UNF	RH4	B	36	11	3
107045	NO.1 - 72 UNF	RH5	P	36	11	3
106045	NO.1 - 72 UNF	RH5	B	36	11	3
156502	NO.2 - 56 UNC	RH3	P	42	11	3
156504	NO.2 - 56 UNC	RH3	B	42	11	3
129309	NO.2 - 56 UNC	RH4	P	42	11	3
129310	NO.2 - 56 UNC	RH4	B	42	11	3
129311	NO.2 - 56 UNC	RH5	P	42	11	3
129312	NO.2 - 56 UNC	RH5	B	42	11	3
156506	NO.4 - 40 UNC	RH3	P	44	12	3
156508	NO.4 - 40 UNC	RH3	B	44	12	3
129317	NO.4 - 40 UNC	RH5	P	44	12	3
129318	NO.4 - 40 UNC	RH5	B	44	12	3
129319	NO.4 - 40 UNC	RH5	1B	44	12	3
129315	NO.4 - 40 UNC	RH6	P	44	12	3
129316	NO.4 - 40 UNC	RH6	B	44	12	3
129322	NO.4 - 40 UNC	RH7	B	44	12	3
156511	NO.6 - 32 UNC	RH3	P	48	18	4
156514	NO.6 - 32 UNC	RH3	B	48	18	4
129324	NO.6 - 32 UNC	RH5	P	48	18	4
156515	NO.6 - 32 UNC	RH5	B	48	18	4
129325	NO.6 - 32 UNC	RH6	P	48	18	4
129326	NO.6 - 32 UNC	RH6	B	48	18	4
129327	NO.6 - 32 UNC	RH7	P	48	18	4
129328	NO.6 - 32 UNC	RH7	B	48	18	4
129330	NO.6 - 32 UNC	RH8	B	48	18	4
156517	NO.8 - 32 UNC	RH4	P	52	20	5
156519	NO.8 - 32 UNC	RH4	B	52	20	5
156520	NO.8 - 32 UNC	RH5	P	52	20	5
156518	NO.8 - 32 UNC	RH5	B	52	20	5
129333	NO.8 - 32 UNC	RH6	P	52	20	5
129334	NO.8 - 32 UNC	RH6	B	52	20	5
129336	NO.8 - 32 UNC	RH7	P	52	20	5
129335	NO.8 - 32 UNC	RH7	B	52	20	5
156521	NO.10 - 24 UNC	RH4	P	60	22	5.5
156523	NO.10 - 24 UNC	RH4	B	60	22	5.5
156536	NO.10 - 24 UNC	RH6	P	60	22	5.5
156537	NO.10 - 24 UNC	RH6	B	60	22	5.5
129341	NO.10 - 24 UNC	RH7	P	60	22	5.5
129342	NO.10 - 24 UNC	RH7	B	60	22	5.5
156525	NO.10 - 32 UNF	RH4	P	60	22	5.5
156527	NO.10 - 32 UNF	RH4	B	60	22	5.5
129343	NO.10 - 32 UNF	RH7	P	60	22	5.5
129344	NO.10 - 32 UNF	RH7	B	60	22	5.5
156529	1/4 - 20 UNC	RH6	P	62	24	6
156531	1/4 - 20 UNC	RH6	B	62	24	6
129355	1/4 - 20 UNC	RH7	P	62	24	6
129356	1/4 - 20 UNC	RH7	B	62	24	6
156533	1/4 - 28 UNF	RH5	P	62	24	6
156535	1/4 - 28 UNF	RH5	B	62	24	6
129357	1/4 - 28 UNF	RH7	P	62	24	6
129358	1/4 - 28 UNF	RH7	B	62	24	6

All table dimensions in mm.
