CHIPLESS TAPS FOR THREAD ROLLING MACHINES

CHIPLESS TAPS FOR STEEL WITH SHORT THREAD

Fluteless taps produce threads by deforming the material, thus without any chips. They are suitable for blind and through holes, and their field of application has grown wider, including now aluminum, steel and stainless.

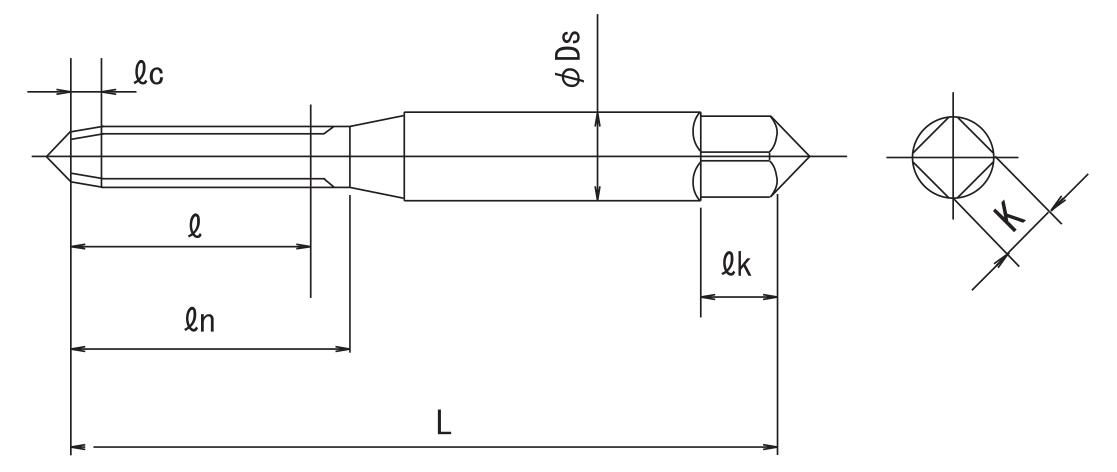

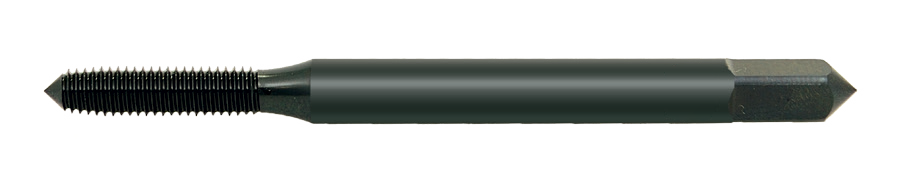

Outlook & Drawing метчика-раскатника

vanadium-containing high-speed steel with Homo Processing

Application of the Fluteless Tap

Tool Material Type: Vanadium-containing High-Speed Steel (HSSE)

Surface treatment: Homo Processing

Features of the Tap

High efficiency and longer tool life
No chip formation and save chip disposal time
Reduced danger of breakage through rigid design
For the production of threads in through and blind holes
Produce an excellent pitch diameter well within the class of fit the pitch diameter tolerances
Ideally suited for short thread application

Attention! Threading with fluteless tap is only applicable for stringy materials

Work material and recommended tapping speed

Work Material	Blind hole	Through hole	suitable cutting speed (m/min)	Work Material	suitable cutting speed (m/min)
Low Carbon Steels ~C0.25	Good	Good	8~13	Brass castings/Brass Bsc.Bs	7~12
Medium Carbon Steels C0.25~C0.45	Good	Good	7~10	Aluminum Rolled AL	10~20
High Carbon Steels C0.45~	Good	Good	5~8	Bronze PB	7~12
Alloy steels SCM			5~8	Aluminum alloy castings AC ADC	10~15
Hardened Steels HRC25~45			-	Magnesium alloy casting MC	-
Stainless Steels SUS			5~10	Zinc castings ZDC	7~12
Cast Steel SC			-	Titanium Alloys Ti-AL	-
Cast Iron FC			-	Nickel alloys Inocorel	-
High Tension Cast Iron FCD			-	Thermosetting Plastic Epoxy	-
Cooper Cu	Good	Good	7~12	Thermoplastic PVC Nylon POM	-

Lubrication

Cutting Fluid	Work Material
NON-WATER SOLUBLE	Carbon steels (low,medium,high), Alloy steels, Hardened Steels, Stain steels, Cast steels, Cast iron, Ductile cast, Cooper, Brass, Brass casting, Bronze, Aluminum Rolled, Aluminum alloy casting, Masnesium alloy casting, Zinc alloy casting
WATER SOLUBLE	Carbon steels (low,medium,high), Alloy steels, Hardened Steels, Stain steels, Cast steels, Cast iron, Ductile cast, Cooper, Brass, Brass casting, Bronze, Aluminum Rolled, Aluminum alloy casting, Masnesium alloy casting, Zinc alloy casting, Thermosetting Plastic, Thermoplastic
SEMI-DRY	Cast iron, Ductile cast, Brass, Brass casting, Thermosetting Plastic
DRY	Cast iron, Brass, Brass casting, Thermosetting Plastic

Ordering of the Chipless Taps for Steel with Short Thread

Metric thread
RG NO.	Thread Size	TAP Limit	Chamfer (lc)	Total Length (L)	Thread Length (l)	Shank Dia. (Ds)
157002	M1.7 X 0.35	RH3	P	36	8	3
157004	M1.7 X 0.35	RH3	B	36	8	3
132701	M1.7 X 0.35	RH4	P	36	8	3
132702	M1.7 X 0.35	RH4	B	36	8	3
157006	M2 X 0.4	RH3	P	40	9	3
157009	M2 X 0.4	RH3	B	40	9	3
157007	M2 X 0.4	RH4	P	40	9	3
157010	M2 X 0.4	RH4	B	40	9	3
132703	M2 X 0.4	RH5	P	40	9	3
132704	M2 X 0.4	RH5	B	40	9	3
132707	M2.3 X 0.4	RH5	P	42	9	3
132708	M2.3 X 0.4	RH5	B	42	9	3
157014	M2.5 X 0.45	RH3	P	44	10	3
157017	M2.5 X 0.45	RH3	B	44	10	3
157015	M2.5 X 0.45	RH4	P	44	10	3
157018	M2.5 X 0.45	RH4	B	44	10	3
132709	M2.5 X 0.45	RH5	P	44	10	3
132710	M2.5 X 0.45	RH5	B	44	10	3
157020	M2.6 X 0.45	RH3	P	44	10	3
157023	M2.6 X 0.45	RH3	B	44	10	3
157021	M2.6 X 0.45	RH4	P	44	10	3
157024	M2.6 X 0.45	RH4	B	44	10	3
132711	M2.6 X 0.45	RH5	P	44	10	3
132712	M2.6 X 0.45	RH5	B	44	10	3
157026	M3 X 0.5	RH3	P	46	11	4
157030	M3 X 0.5	RH3	B	46	11	4
157027	M3 X 0.5	RH4	P	46	11	4
157031	M3 X 0.5	RH4	B	46	11	4
157028	M3 X 0.5	RH5	P	46	11	4
157032	M3 X 0.5	RH5	B	46	11	4
132713	M3 X 0.5	RH6	P	46	11	4
132714	M3 X 0.5	RH6	B	46	11	4
157034	M3.5 X 0.6	RH3	P	48	11	4
157036	M3.5 X 0.6	RH3	B	48	11	4
132717	M3.5 X 0.6	RH5	P	48	11	4
132718	M3.5 X 0.6	RH5	B	48	11	4
157038	M4 X 0.7	RH4	P	52	12	5
157041	M4 X 0.7	RH4	B	52	12	5
157039	M4 X 0.7	RH6	P	52	12	5
157042	M4 X 0.7	RH6	B	52	12	5
132719	M4 X 0.7	RH7	P	52	12	5
132720	M4 X 0.7	RH7	B	52	12	5
157044	M5 X 0.8	RH4	P	60	13	5.5
157047	M5 X 0.8	RH4	B	60	13	5.5
157045	M5 X 0.8	RH6	P	60	13	5.5
157048	M5 X 0.8	RH6	B	60	13	5.5
132725	M5 X 0.8	RH7	P	60	13	5.5
132726	M5 X 0.8	RH7	B	60	13	5.5
157050	M6 X 1	RH4	P	62	14	6
157052	M6 X 1	RH4	B	62	14	6
132729	M6 X 1	RH7	P	62	14	6
132730	M6 X 1	RH7	B	62	14	6

All table dimensions in mm.

U-Type thread
RG NO.	Thread Size	TAP Limit	Chamfer (lc)	Total Length (L)	Thread Length (l)	Shank Dia. (Ds)
156902	NO.2 - 56 UNC	RH3	P	42	9	3
156904	NO.2 - 56 UNC	RH3	B	42	9	3
132609	NO.2 - 56 UNC	RH4	P	42	9	3
132610	NO.2 - 56 UNC	RH4	B	42	9	3
156906	NO.4 - 40 UNC	RH3	P	44	10	3
156908	NO.4 - 40 UNC	RH3	B	44	10	3
132617	NO.4 - 40 UNC	RH5	P	44	10	3
132618	NO.4 - 40 UNC	RH5	B	44	10	3
156910	NO.6 - 32 UNC	RH3	P	48	11	4
156913	NO.6 - 32 UNC	RH3	B	48	11	4
156911	NO.6 - 32 UNC	RH5	P	48	11	4
156914	NO.6 - 32 UNC	RH5	B	48	11	4
132625	NO.6 - 32 UNC	RH6	P	48	11	4
132626	NO.6 - 32 UNC	RH6	B	48	11	4
156916	NO.8 - 32 UNC	RH4	P	52	12	5
156918	NO.8 - 32 UNC	RH4	B	52	12	5
132633	NO.8 - 32 UNC	RH6	P	52	12	5
132634	NO.8 - 32 UNC	RH6	B	52	12	5
156920	NO.10 - 24 UNC	RH4	P	60	13	5.5
156922	NO.10 - 24 UNC	RH4	B	60	13	5.5
132641	NO.10 - 24 UNC	RH6	P	60	13	5.5
132642	NO.10 - 24 UNC	RH6	B	60	13	5.5
156924	NO.10 - 32 UNF	RH4	P	60	13	5.5
156926	NO.10 - 32 UNF	RH4	B	60	13	5.5
132643	NO.10 - 32 UNF	RH6	P	60	13	5.5
132644	NO.10 - 32 UNF	RH6	B	60	13	5.5
156928	1/4 - 20 UNC	RH6	P	62	14	6
156930	1/4 - 20 UNC	RH6	B	62	14	6
132655	1/4 - 20 UNC	RH7	P	62	14	6
132656	1/4 - 20 UNC	RH7	B	62	14	6
156932	1/4 - 28 UNF	RH5	P	62	14	6
156934	1/4 - 28 UNF	RH5	B	62	14	6
132657	1/4 - 28 UNF	RH6	P	62	14	6
132658	1/4 - 28 UNF	RH6	B	62	14	6

All table dimensions in mm.
