COLD HEADING DIES

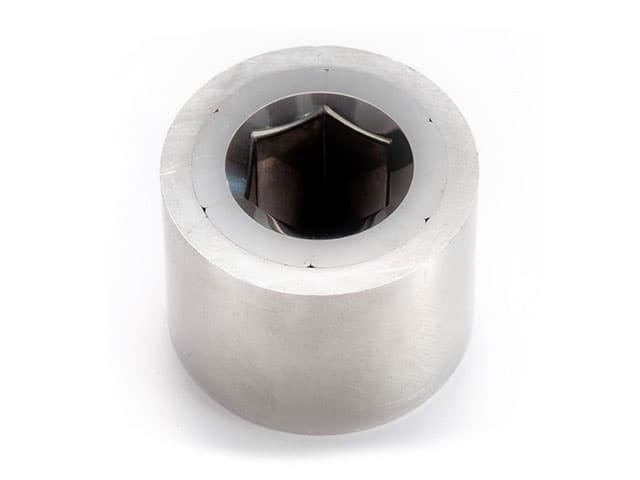

Segmented Hex Socket Dies with Sleeve
Features of Segmented Hex Socket Dies
- The segmented shape increases the precision and improves the fine polishing of the carbide dies insert.
- The wire cutting process guarantees the highest precision of the tool.
- The segmented die oil separation system design increases die strength and facilitates replacement of the carbide die insert.

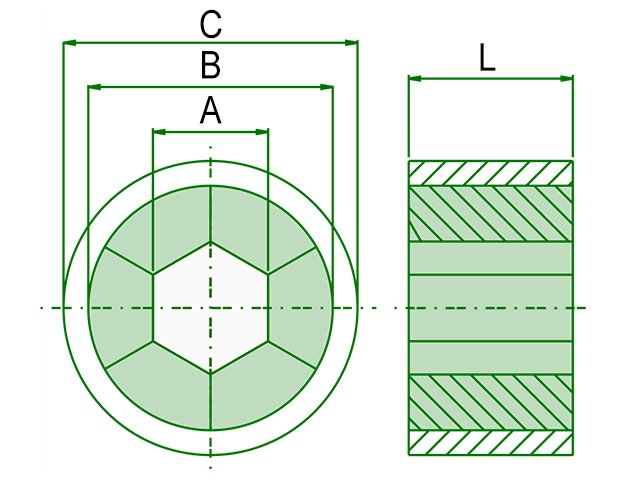

| A | B | C | L | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Workpiece size | mm | mm | mm | ±0.02 | |||||
| 10 | 12 | 15 | 17 | 20 | 25 | ||||
| M3 | 5.33 | 20.12 | 16.00 | ■ | ■ | ■ | |||
| M3.5 | 5.83 | 20.12 | 16.00 | ■ | ■ | ■ | |||
| M4 | 6.83 | 22.13 | 18.00 | ■ | ■ | ■ | |||
| M5 | 7.83 | 22.13 | 18.00 | ■ | ■ | ■ | ■ | ||
| M6 | 9.85 | 25.15 | 20.00 | ■ | ■ | ■ | ■ | ||
| M8 | 11.80 | 29.17 | 24.00 | ■ | ■ | ■ | |||
| M8 | 12.80 | 29.17 | 24.00 | ■ | ■ | ■ | |||
| M10 | 13.80 | 33.20 | 28.00 | ■ | ■ | ■ | ■ | ||
| M12 | 16.80 | 41.24 | 35.00 | ■ | ■ | ■ | ■ | ||
| M14 | 18.75 | 44.26 | 38.00 | ■ | ■ | ■ | ■ | ||
| M16 | 21.75 | 49.30 | 43.00 | ■ | ■ | ■ | ■ | ||
| #6 | 6.22 | 20.12 | 16.00 | ■ | ■ | ■ | |||
| #8 | 6.22 | 20.12 | 16.00 | ■ | ■ | ■ | |||
| #10 | 7.22 | 22.13 | 18.00 | ■ | ■ | ■ | |||
| #12 | 7.22 | 22.13 | 18.00 | ■ | ■ | ■ | ■ | ||
| 1/4" | 9.34 | 25.15 | 20.00 | ■ | ■ | ■ | ■ | ||
| 1/4" | 10.82 | 29.17 | 24.00 | ■ | ■ | ■ | |||
| 5/16" | 12.46 | 29.17 | 24.00 | ■ | ■ | ■ | |||
| 3/8" | 14.02 | 33.20 | 28.00 | ■ | ■ | ■ | ■ | ||
| 7/16" | 15.55 | 41.24 | 35.00 | ■ | ■ | ■ | ■ | ||
| 1/2" | 18.70 | 44.26 | 38.00 | ■ | ■ | ■ | ■ | ||
| 9/16" | 20.35 | 49.30 | 43.00 | ■ | ■ | ■ | ■ | ||
