High Performance Nut Taps for Stainless Steel over 28 HrC & Hot Forging Nuts

Purpose and features of nut taps

Nut taps are used to cut through threads in nuts in one pass without screwing the nuts by threading them onto the shank end. These nut taps are used for threading stainless steel nuts on special Automatic Nuts Tapping Machine.

Special chip flute design provides better chip evacuation when threading stainless steel nuts.
These nut taps are available in metric, american and imperial threads.
Total length from 55 to 165 mm with thread length from 12 to 95 mm.
The standard thread length is 30 threads.
Round shank.
We make design and manufacture of nut taps according to customer requirements.
Tool Material Type: Vanadium-containing High-Speed Steel (HSSE)
Multilayer Titanium Carbon Nitride (TiCN) coating achieves longer tool life.
These nut taps are manufactured with increased accuracy class A (10 µm), and not standard GH (13 µm).

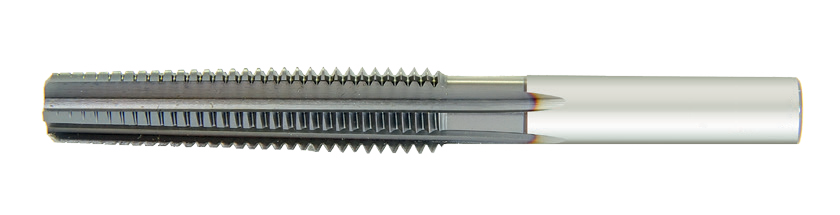

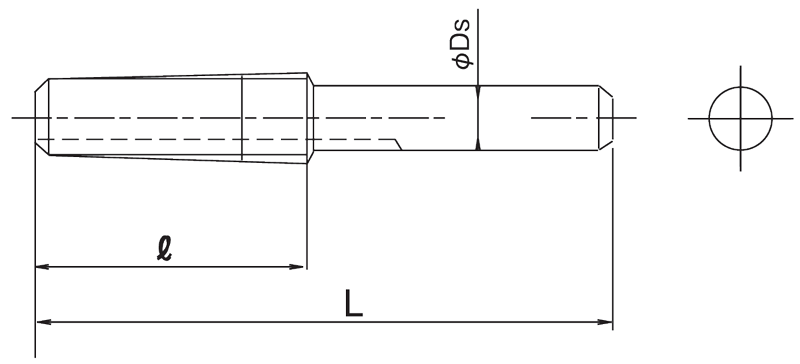

Outlook & Drawing of Nut Taps for Hot Forging Nuts

Table 1. Metric thread (all table dimensions in mm)

Thread Specification	Threads per inch (25.4 mm)	L Total Length	l Thread Length	Ds Shank Dia.
M2 X 0.4	30T	60	12	1.5
M2.5 X 0.45		54.9	13.5	1.9
M2.6 X 0.45		55	13.5	2
M3 X 0.5		58.6	15	2.3
M4 X 0.7		58.2	21	3
M5 X 0.8		62.8	24	3.8
M6 X 1		67.4	30	4.5
M7 X 1		70	30	5.6
M8 X 1.25		85	37.5	6.05
M8 X 1		77	30	6.4
M10 X 1.5		89	45	7.8
M10 X 1.25		89	37.5	8.1
M10 X 1		89	30	8.4
M12 X 1.75		102	52.5	9.5
M12 X 1.5		102	45	9.8
M12 X 1.25		102	37.5	10.1
M12 X 1		102	30	10.5
M14 X 2		114	60	11.2
M14 X 1.5		114	45	11.2
M16 X 2		127	60	13.1
M16 X 1.5		127	45	13.1
M18 X 2.5		133	75	14
M18 X 2		133	60	15
M20 X 2.5		133	75	15.5
M20 X 2		133	60	16.5
M20 X 1.5		133	45	16.5
M22 X 2.5		146	75	16.5
M22 X 2		146	60	19
M24 X 3		165	90	18.5
M24 X 2		165	60	20
M24 X 1.5		165	45	21.5

Table 3. American thread (all table dimensions in mm)

Thread Specification	Threads per inch (25.4 mm)	L Total Length	l Thread Length	Ds Shank Dia.
NO.2 - 56 UNC	30T	58.2	13.6	1.5
NO.2 - 64 UNF		58.2	11.9	1.5
NO.4 - 40 UNC		58.9	19.1	2
NO.4 - 48 UNF		58.9	15.9	2
NO.5 - 40 UNC		58.6	19.1	2.2
NO.5 - 44 UNF		58.6	17.3	2.2
NO.6 - 32 UNC		60.6	23.8	2.4
NO.6 - 40 UNF		60.6	19.1	2.6
NO.8 - 32 UNC		60.2	23.8	3.1
NO.8 - 36 UNF		60.2	21.2	3.1
NO.10 - 24 UNC		69	31.8	3.4
NO.10 - 32 UNF		68.7	23.8	3.7
NO.12 - 24 UNC		69.7	31.8	4
NO.12 - 28 UNF		69.5	27.2	4.2
1/4 - 20 UNC		72.3	38.1	4.5
1/4 - 28 UNF		71.9	27.2	5
5/16 - 18 UNC		80	42.3	6
5/16 - 24 UNF		80	31.8	6.3
3/8 - 16 UNC		89	47.6	7.3
3/8 - 24 UNF		89	31.8	8
7/16 - 14 UNC		102	54.4	8.6
7/16 - 20 UNF		102	38.1	9.3
1/2 - 13 UNC		102	58.6	10
1/2 - 20 UNF		102	38.1	10.9
9/16 - 12 UNC		114	63.5	11
9/16 - 18 UNF		114	42.3	11.4
5/8 - 11 UNC		127	69.3	12.8
5/8 - 18 UNF		127	42.3	13.1
3/4 - 10 UNC		133	76.2	15
3/4 - 16 UNF		133	47.6	15
7/8 - 9 UNC		146	84.7	17
7/8 - 14 UNF		146	54.4	18.5
1 - 8 UNC		165	95.3	20
1 - 12 UNF		165	63.5	21

Table 5. W-Type thread (all table dimensions in mm)

Thread Specification	Threads per inch (25.4 mm)	L Total Length	l Thread Length	Ds Shank Dia.
W 3/16 - 24	30T	69	31.8	3.2
W 1/4 - 20		72.4	38.1	4.5
W 5/16 - 18		80	42.3	6
W 3/8 - 16		89	47.6	7.3
W 7/16 - 14		102	54.4	8.6
W 1/2 - 12		102	63.5	9.5
W 9/16 - 12		114	63.5	10.5
W 3/4 - 10		133	76.2	15
W 7/8 - 9		133	84.7	17
W 1 - 8		165	95.3	20
